AD9609BCPZ-40

AD9609BCPZ-40 Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. LFCSP-32 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 80 MS/s. Differential input type Interface Type: Parallel, SPI Pipeline architecture External, Internal is the reference type. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tray packaging for easy dispensing The height of the product is 0.83 mm. 2 Vp-p Input Voltage 5 mm long This device belongs to the S/H ADC type. Analog Devices is a trusted brand for quality electronics The 0.25 LSB, ensuring accurate and precise analog-to-digital conversion. - 1.5 %FSR is 0.2%. INL is within +/- 0.35 LSB Yes regarding Moisture Sensitivity 1.8 V operating supply voltage range 89.5 mW ADCs - Analog to Digital Converters product type 490 of 100 Data Converter ICs as subcategory 1. 0.003739 oz of Unit Weight

AD9609BCPZ-40 Image

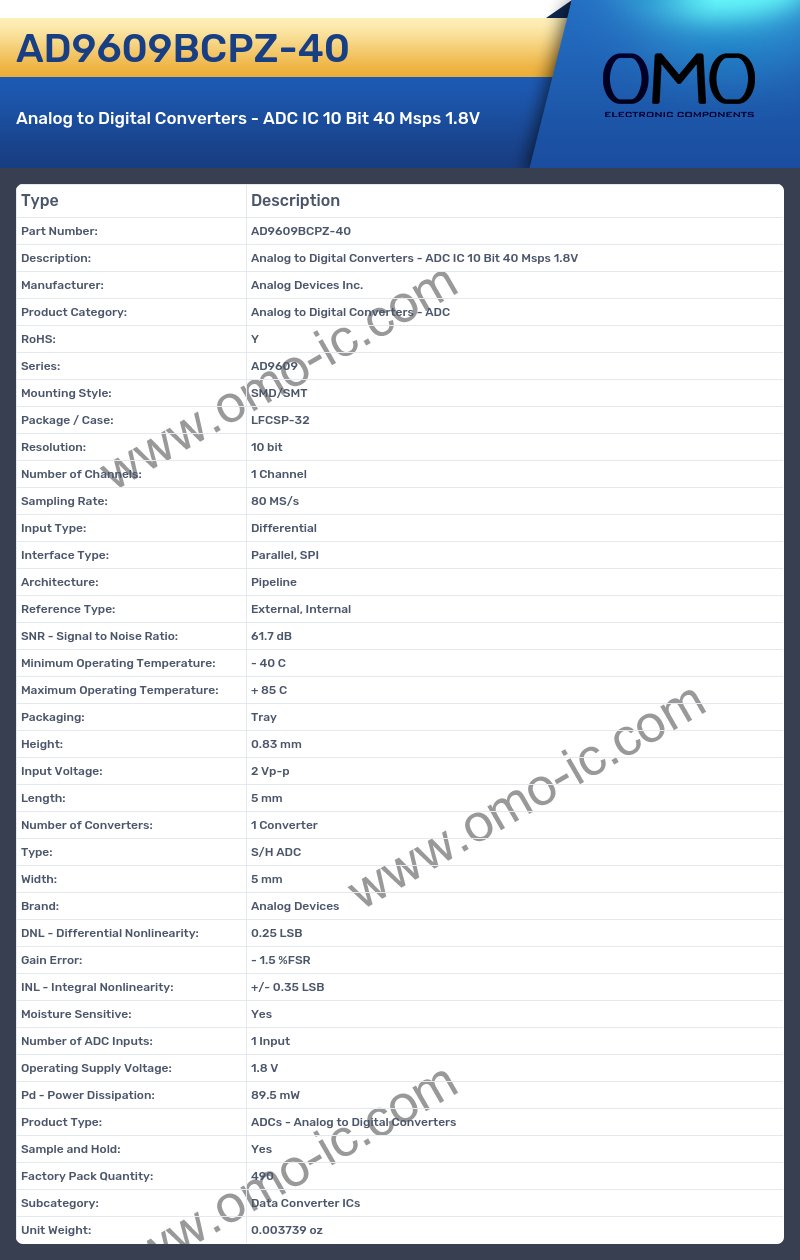

AD9609BCPZ-40 Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: AD9609
• Mounting Style: SMD/SMT
• Package / Case: LFCSP-32
• Resolution: 10 bit
• Number of Channels: 1 Channel
• Sampling Rate: 80 MS/s
• Input Type: Differential
• Interface Type: Parallel, SPI
• Architecture: Pipeline
• Reference Type: External, Internal
• SNR - Signal to Noise Ratio: 61.7 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tray
• Height: 0.83 mm
• Input Voltage: 2 Vp-p
• Length: 5 mm
• Number of Converters: 1 Converter
• Type: S/H ADC
• Width: 5 mm
• Brand: Analog Devices
• DNL - Differential Nonlinearity: 0.25 LSB
• Gain Error: - 1.5 %FSR
• INL - Integral Nonlinearity: +/- 0.35 LSB
• Moisture Sensitive: Yes
• Number of ADC Inputs: 1 Input
• Operating Supply Voltage: 1.8 V
• Pd - Power Dissipation: 89.5 mW
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• Factory Pack Quantity: 490
• Subcategory: Data Converter ICs
• Unit Weight: 0.003739 oz
