AD9225ARS Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. SSOP-28 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 25 MS/s. Differential/Single-Ended input type Interface Type: Parallel Pipeline architecture External, Internal is the reference type. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing The height of the product is 1.75 mm. 2 Vp-p/4 Vp-p Input Voltage 10.2 mm long This device belongs to the S/H ADC type. Analog Devices is a trusted brand for quality electronics The +/- 1 LSB, ensuring accurate and precise analog-to-digital conversion. +/- 2.2 %FSR is 0.2%. INL is within +/- 2.5 LSB 5 V operating supply voltage range 383 mW ADCs - Analog to Digital Converters product type 47 of 100 Data Converter ICs as subcategory 1. 0.025045 oz of Unit Weight

AD9225ARS Image

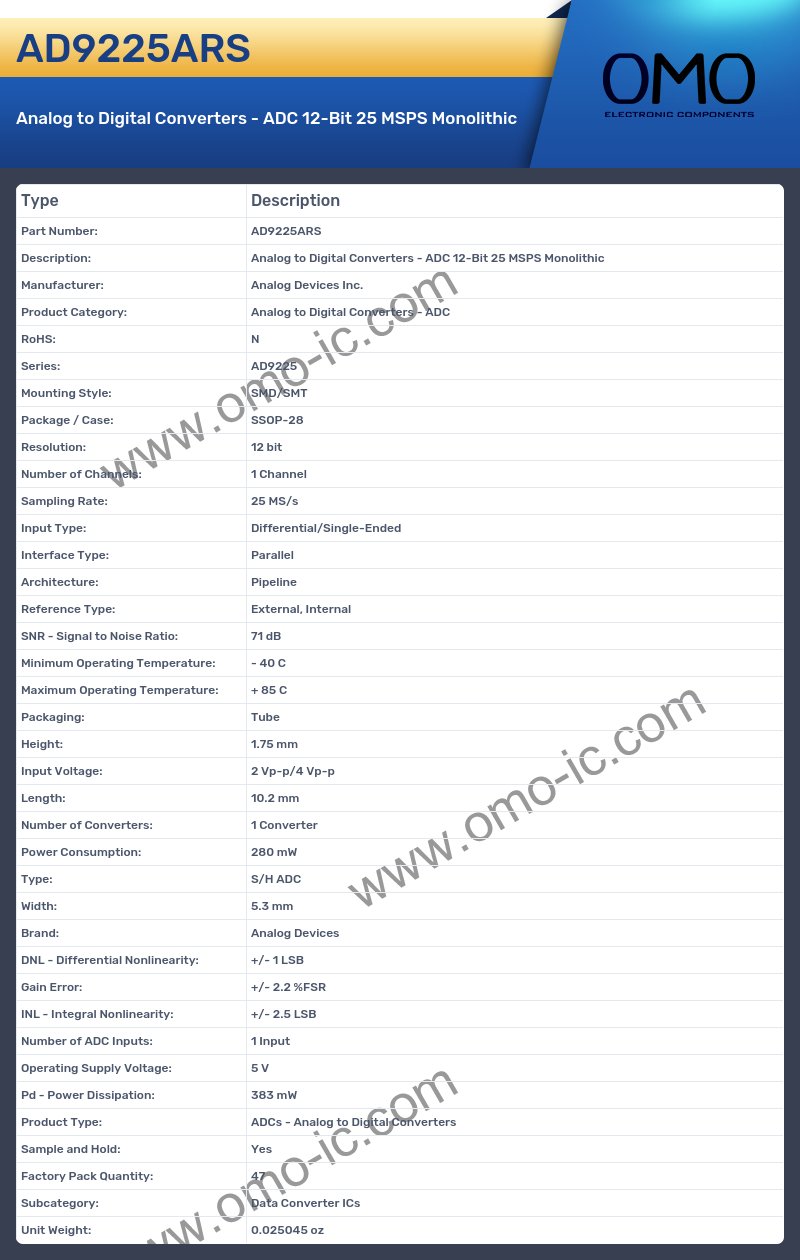

AD9225ARS Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: N
• Series: AD9225
• Mounting Style: SMD/SMT
• Package / Case: SSOP-28
• Resolution: 12 bit
• Number of Channels: 1 Channel
• Sampling Rate: 25 MS/s
• Input Type: Differential/Single-Ended
• Interface Type: Parallel
• Architecture: Pipeline
• Reference Type: External, Internal
• SNR - Signal to Noise Ratio: 71 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tube
• Height: 1.75 mm
• Input Voltage: 2 Vp-p/4 Vp-p
• Length: 10.2 mm
• Number of Converters: 1 Converter
• Power Consumption: 280 mW
• Type: S/H ADC
• Width: 5.3 mm
• Brand: Analog Devices
• DNL - Differential Nonlinearity: +/- 1 LSB
• Gain Error: +/- 2.2 %FSR
• INL - Integral Nonlinearity: +/- 2.5 LSB
• Number of ADC Inputs: 1 Input
• Operating Supply Voltage: 5 V
• Pd - Power Dissipation: 383 mW
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• Factory Pack Quantity: 47
• Subcategory: Data Converter ICs
• Unit Weight: 0.025045 oz
