AD9214BRSZ-RL65

AD9214BRSZ-RL65 Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. SSOP-28 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 80 MS/s. Differential input type Interface Type: Parallel Pipeline architecture External, Internal is the reference type. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Reel packaging for easy dispensing The height of the product is 1.75 mm. 1 Vp-p/2 Vp-p Input Voltage 10.2 mm long This device belongs to the S/H ADC type. Analog Devices is a trusted brand for quality electronics The - 1 LSB/1.2 LSB, ensuring accurate and precise analog-to-digital conversion. - 2 %FSR/8 %FSR is 0.2%. INL is within +/- 1.9 LSB 3.3 V operating supply voltage range 325 mW ADCs - Analog to Digital Converters product type 1500 of 100 Data Converter ICs as subcategory 1. 0.025045 oz of Unit Weight

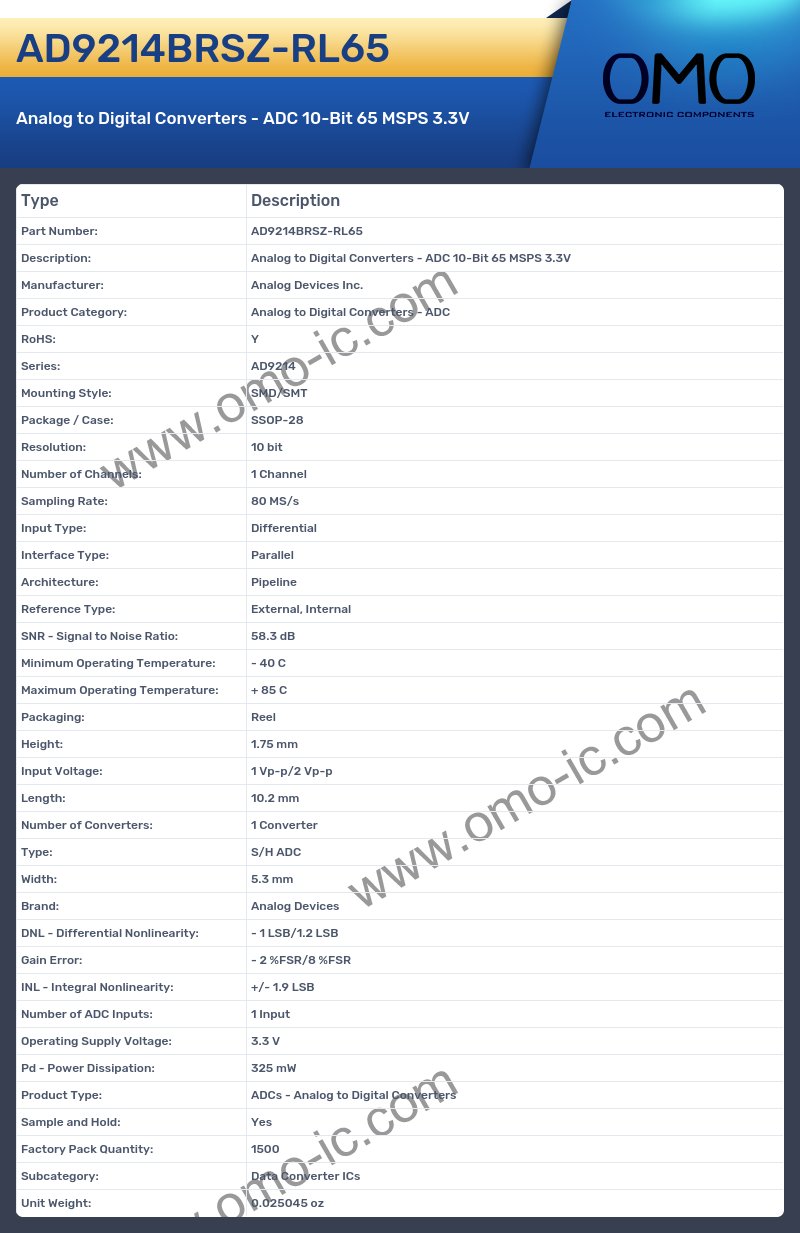

AD9214BRSZ-RL65 Image

AD9214BRSZ-RL65 Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: AD9214
• Mounting Style: SMD/SMT
• Package / Case: SSOP-28
• Resolution: 10 bit
• Number of Channels: 1 Channel
• Sampling Rate: 80 MS/s
• Input Type: Differential
• Interface Type: Parallel
• Architecture: Pipeline
• Reference Type: External, Internal
• SNR - Signal to Noise Ratio: 58.3 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Reel
• Height: 1.75 mm
• Input Voltage: 1 Vp-p/2 Vp-p
• Length: 10.2 mm
• Number of Converters: 1 Converter
• Type: S/H ADC
• Width: 5.3 mm
• Brand: Analog Devices
• DNL - Differential Nonlinearity: - 1 LSB/1.2 LSB
• Gain Error: - 2 %FSR/8 %FSR
• INL - Integral Nonlinearity: +/- 1.9 LSB
• Number of ADC Inputs: 1 Input
• Operating Supply Voltage: 3.3 V
• Pd - Power Dissipation: 325 mW
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• Factory Pack Quantity: 1500
• Subcategory: Data Converter ICs
• Unit Weight: 0.025045 oz
