AD844AN

AD844AN Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of Through Hole. PDIP-8 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. This product has a 100 dB of 50 dB, ensuring reliable signal acquisition. This product has an 400 nA of 5 uA for precise signal processing. The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. This product does not have a No Shutdown feature, ensuring continuous operation. Tube packaging for easy dispensing The amplifier type is General Purpose Amplifier. The height of the product is 3.43 mm. 9.27 mm long Operational Amplifiers Supply Type: Dual This device belongs to the General Purpose Amplifier type. Analog Devices is a trusted brand for quality electronics Bandwidth at -3 dB is 20 Mhz The 12 pA/sqrt Hz is 0.7 pA/rtHz. 1. The maximum dual supply voltage is +/- 18 V. +/- 4.5 V minimum dual supply voltage +/- 15 V operating supply voltage range 1.1 W Op Amps - Operational Amplifiers product type This product has a 108 dB of 50 dB, providing reliable power supply noise rejection. 50 of 100 Amplifier ICs as subcategory 1. 0.032805 oz of Unit Weight

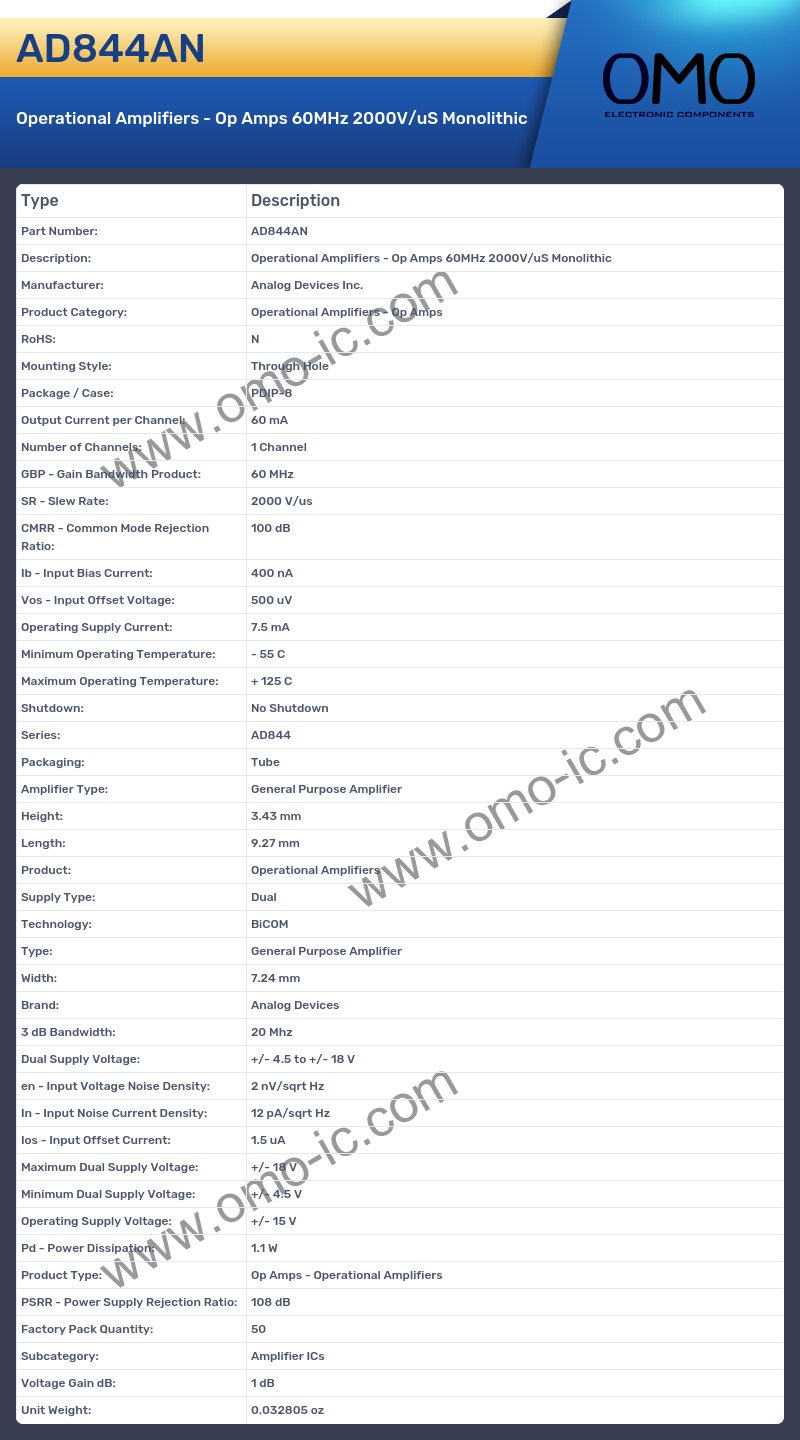

AD844AN Image

AD844AN Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Operational Amplifiers - Op Amps
• RoHS: N
• Mounting Style: Through Hole
• Package / Case: PDIP-8
• Output Current per Channel: 60 mA
• Number of Channels: 1 Channel
• GBP - Gain Bandwidth Product: 60 MHz
• SR - Slew Rate: 2000 V/us
• CMRR - Common Mode Rejection Ratio: 100 dB
• Ib - Input Bias Current: 400 nA
• Vos - Input Offset Voltage: 500 uV
• Operating Supply Current: 7.5 mA
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Shutdown: No Shutdown
• Series: AD844
• Packaging: Tube
• Amplifier Type: General Purpose Amplifier
• Height: 3.43 mm
• Length: 9.27 mm
• Product: Operational Amplifiers
• Supply Type: Dual
• Technology: BiCOM
• Type: General Purpose Amplifier
• Width: 7.24 mm
• Brand: Analog Devices
• 3 dB Bandwidth: 20 Mhz
• Dual Supply Voltage: +/- 4.5 to +/- 18 V
• en - Input Voltage Noise Density: 2 nV/sqrt Hz
• In - Input Noise Current Density: 12 pA/sqrt Hz
• Ios - Input Offset Current: 1.5 uA
• Maximum Dual Supply Voltage: +/- 18 V
• Minimum Dual Supply Voltage: +/- 4.5 V
• Operating Supply Voltage: +/- 15 V
• Pd - Power Dissipation: 1.1 W
• Product Type: Op Amps - Operational Amplifiers
• PSRR - Power Supply Rejection Ratio: 108 dB
• Factory Pack Quantity: 50
• Subcategory: Amplifier ICs
• Voltage Gain dB: 1 dB
• Unit Weight: 0.032805 oz
