AD830ANZ

AD830ANZ Overview

This product is manufactured by Analog Devices Inc.. This product is equipped with 1 Channel for efficient performance. This product has a 90 dB of 50 dB, ensuring reliable signal acquisition. This product has an 10 uA of 5 uA for precise signal processing. Supply Voltage - Max: 33 V Supply Voltage - Min: 8 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of Through Hole. PDIP-8 package/case type is utilized by this product. Tube packaging for easy dispensing The amplifier type is Video Line Receiver. The height of the product is 3.43 mm. 9.27 mm long The output type is -. Differential Amplifiers Supply Type: Dual Analog Devices is a trusted brand for quality electronics Maximum input voltage range of 12.8 V This product does not have a No Shutdown feature, ensuring continuous operation. THD plus Noise value is - 72 dB. 15 MHz 0.1 dB gain flatness Bandwidth at -3 dB is 85 MHz Gain ratio is 1 V/V. 1. The maximum dual supply voltage is 16.5 V. +/- 4 V minimum dual supply voltage 4 V to 16.5 V operating supply voltage range Differential Amplifiers product type This product has a 86 dB of 50 dB, providing reliable power supply noise rejection. 25 ns settling time 50 of 100 Amplifier ICs as subcategory 1. 0.032805 oz of Unit Weight

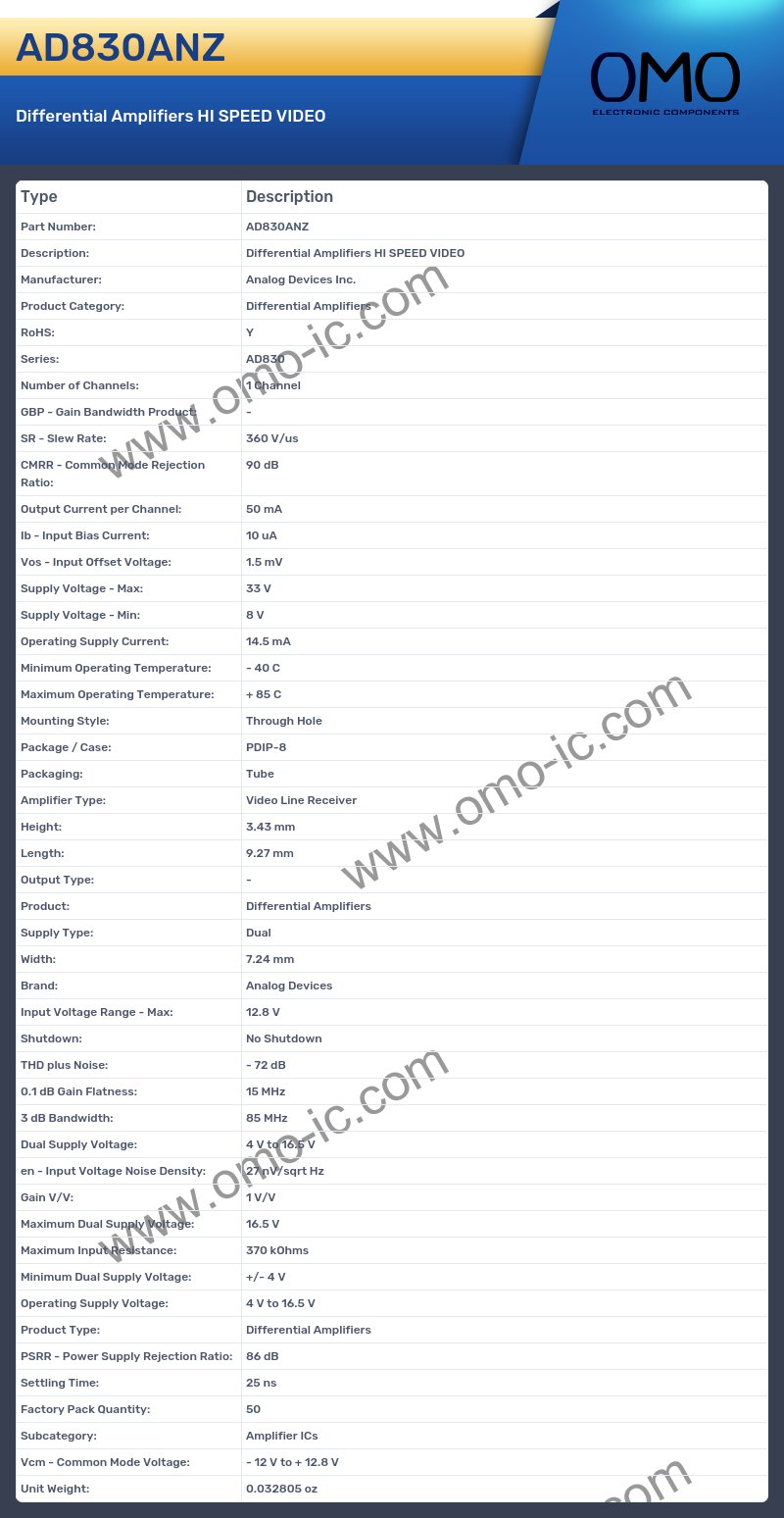

AD830ANZ Image

AD830ANZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Differential Amplifiers
• RoHS: Y
• Series: AD830
• Number of Channels: 1 Channel
• GBP - Gain Bandwidth Product: -
• SR - Slew Rate: 360 V/us
• CMRR - Common Mode Rejection Ratio: 90 dB
• Output Current per Channel: 50 mA
• Ib - Input Bias Current: 10 uA
• Vos - Input Offset Voltage: 1.5 mV
• Supply Voltage - Max: 33 V
• Supply Voltage - Min: 8 V
• Operating Supply Current: 14.5 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: Through Hole
• Package / Case: PDIP-8
• Packaging: Tube
• Amplifier Type: Video Line Receiver
• Height: 3.43 mm
• Length: 9.27 mm
• Output Type: -
• Product: Differential Amplifiers
• Supply Type: Dual
• Width: 7.24 mm
• Brand: Analog Devices
• Input Voltage Range - Max: 12.8 V
• Shutdown: No Shutdown
• THD plus Noise: - 72 dB
• 0.1 dB Gain Flatness: 15 MHz
• 3 dB Bandwidth: 85 MHz
• Dual Supply Voltage: 4 V to 16.5 V
• en - Input Voltage Noise Density: 27 nV/sqrt Hz
• Gain V/V: 1 V/V
• Maximum Dual Supply Voltage: 16.5 V
• Maximum Input Resistance: 370 kOhms
• Minimum Dual Supply Voltage: +/- 4 V
• Operating Supply Voltage: 4 V to 16.5 V
• Product Type: Differential Amplifiers
• PSRR - Power Supply Rejection Ratio: 86 dB
• Settling Time: 25 ns
• Factory Pack Quantity: 50
• Subcategory: Amplifier ICs
• Vcm - Common Mode Voltage: - 12 V to + 12.8 V
• Unit Weight: 0.032805 oz
