AD810AN Overview

This product is manufactured by Analog Devices Inc.. This product is equipped with 1 Channel for efficient performance. Bandwidth at -3 dB is 80 MHz This product has an 7.5 uA of 5 uA for precise signal processing. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of Through Hole. PDIP-8 package/case type is utilized by this product. Tube packaging for easy dispensing The amplifier type is Current Feedback Amplifier. The height of the product is 3.43 mm. No input type 9.27 mm long The output type is No. Video Amplifiers Supply Type: Dual Analog Devices is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. This product has a 52 dB of 50 dB, ensuring reliable signal acquisition. 1. The maximum dual supply voltage is +/- 18 V. +/- 2.5 V minimum dual supply voltage Video Amplifiers product type This product has a 65 dB of 50 dB, providing reliable power supply noise rejection. 50 of 100 Amplifier ICs as subcategory 1. 0.032805 oz of Unit Weight

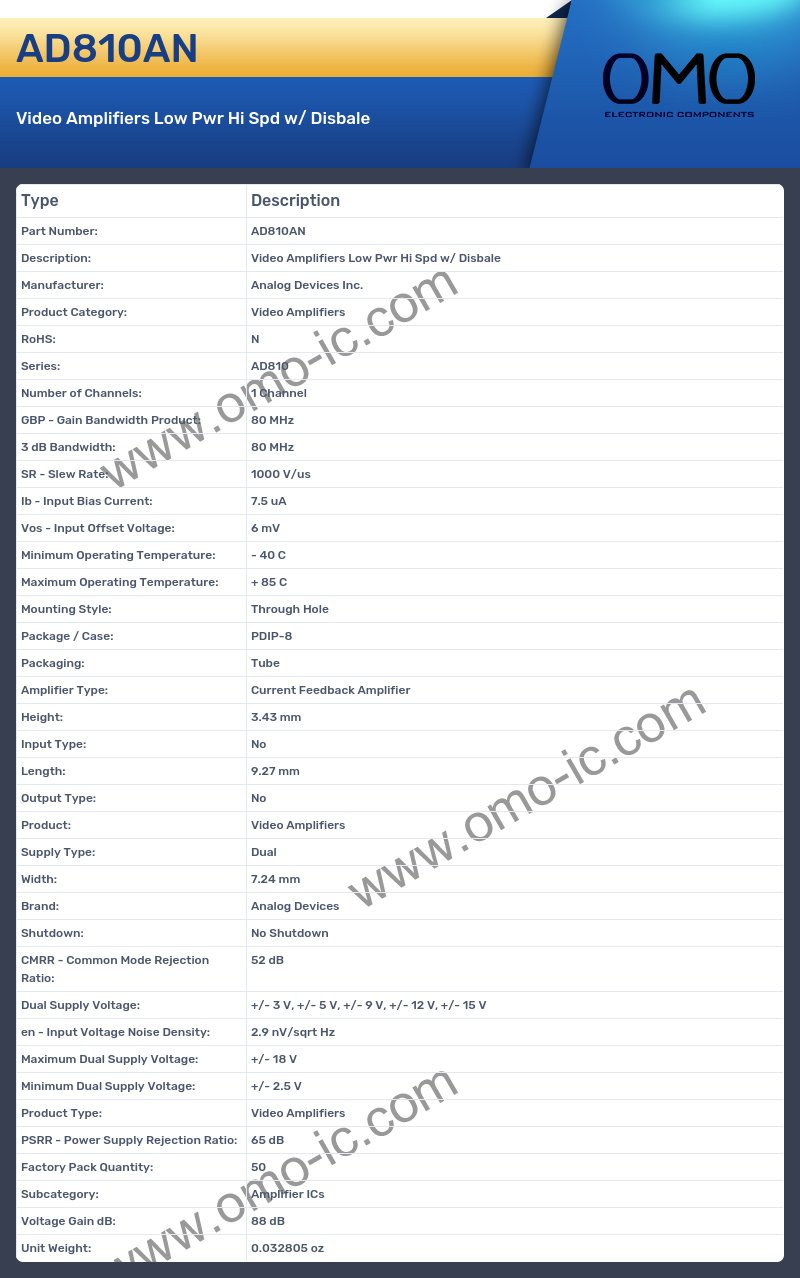

AD810AN Image

AD810AN Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Video Amplifiers
• RoHS: N
• Series: AD810
• Number of Channels: 1 Channel
• GBP - Gain Bandwidth Product: 80 MHz
• 3 dB Bandwidth: 80 MHz
• SR - Slew Rate: 1000 V/us
• Ib - Input Bias Current: 7.5 uA
• Vos - Input Offset Voltage: 6 mV
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: Through Hole
• Package / Case: PDIP-8
• Packaging: Tube
• Amplifier Type: Current Feedback Amplifier
• Height: 3.43 mm
• Input Type: No
• Length: 9.27 mm
• Output Type: No
• Product: Video Amplifiers
• Supply Type: Dual
• Width: 7.24 mm
• Brand: Analog Devices
• Shutdown: No Shutdown
• CMRR - Common Mode Rejection Ratio: 52 dB
• Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V
• en - Input Voltage Noise Density: 2.9 nV/sqrt Hz
• Maximum Dual Supply Voltage: +/- 18 V
• Minimum Dual Supply Voltage: +/- 2.5 V
• Product Type: Video Amplifiers
• PSRR - Power Supply Rejection Ratio: 65 dB
• Factory Pack Quantity: 50
• Subcategory: Amplifier ICs
• Voltage Gain dB: 88 dB
• Unit Weight: 0.032805 oz
