AD8072JNZ

AD8072JNZ Overview

This product is manufactured by Analog Devices Inc.. This product is equipped with 2 Channel for efficient performance. Bandwidth at -3 dB is 100 MHz This product has an 10 uA of 5 uA for precise signal processing. Supply Voltage - Max: 6 V Supply Voltage - Min: 2.5 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. The product can operate at a maximum temperature of Through Hole. PDIP-8 package/case type is utilized by this product. Tube packaging for easy dispensing The amplifier type is Current Feedback Amplifier. The height of the product is 3.43 mm. 9.27 mm long Video Amplifiers Supply Type: Single Analog Devices is a trusted brand for quality electronics This product has a 54 dB (Typ) of 50 dB, ensuring reliable signal acquisition. 1. The maximum dual supply voltage is +/- 6 V. +/- 2.5 V minimum dual supply voltage +/- 2.5 V to +/- 6 V operating supply voltage range 1.3 W Video Amplifiers product type This product has a 64 dB (Typ) of 50 dB, providing reliable power supply noise rejection. 50 of 100 Amplifier ICs as subcategory 1. 0.032805 oz of Unit Weight

AD8072JNZ Image

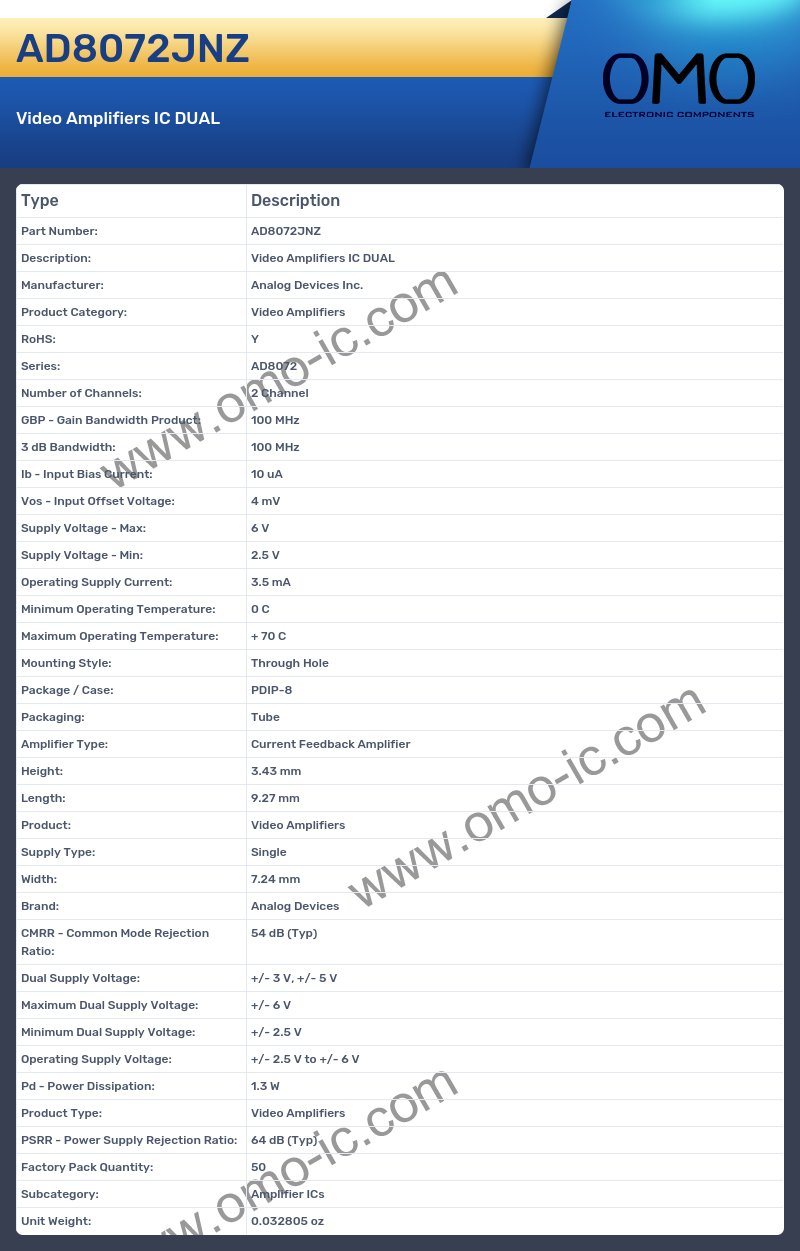

AD8072JNZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Video Amplifiers
• RoHS: Y
• Series: AD8072
• Number of Channels: 2 Channel
• GBP - Gain Bandwidth Product: 100 MHz
• 3 dB Bandwidth: 100 MHz
• Ib - Input Bias Current: 10 uA
• Vos - Input Offset Voltage: 4 mV
• Supply Voltage - Max: 6 V
• Supply Voltage - Min: 2.5 V
• Operating Supply Current: 3.5 mA
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Mounting Style: Through Hole
• Package / Case: PDIP-8
• Packaging: Tube
• Amplifier Type: Current Feedback Amplifier
• Height: 3.43 mm
• Length: 9.27 mm
• Product: Video Amplifiers
• Supply Type: Single
• Width: 7.24 mm
• Brand: Analog Devices
• CMRR - Common Mode Rejection Ratio: 54 dB (Typ)
• Dual Supply Voltage: +/- 3 V, +/- 5 V
• Maximum Dual Supply Voltage: +/- 6 V
• Minimum Dual Supply Voltage: +/- 2.5 V
• Operating Supply Voltage: +/- 2.5 V to +/- 6 V
• Pd - Power Dissipation: 1.3 W
• Product Type: Video Amplifiers
• PSRR - Power Supply Rejection Ratio: 64 dB (Typ)
• Factory Pack Quantity: 50
• Subcategory: Amplifier ICs
• Unit Weight: 0.032805 oz
