AD7861APZ

AD7861APZ Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. PLCC-44 package/case type is utilized by this product. This product is equipped with 7 Channel for efficient performance. The sampling rate of this product is 28.6 kS/s. Single-Ended input type Interface Type: Parallel SAR architecture External, Internal is the reference type. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing The height of the product is 3.68 mm. 5 V Input Voltage 16.66 mm long This device belongs to the S/H ADC type. Analog Devices is a trusted brand for quality electronics The +/- 2.5 LSB, ensuring accurate and precise analog-to-digital conversion. +/- 13 LSB is 0.2%. INL is within +/- 2 LSB Yes regarding Moisture Sensitivity 5 V operating supply voltage range 50 mW ADCs - Analog to Digital Converters product type 27 of 100 Data Converter ICs as subcategory 1. 0.084185 oz of Unit Weight

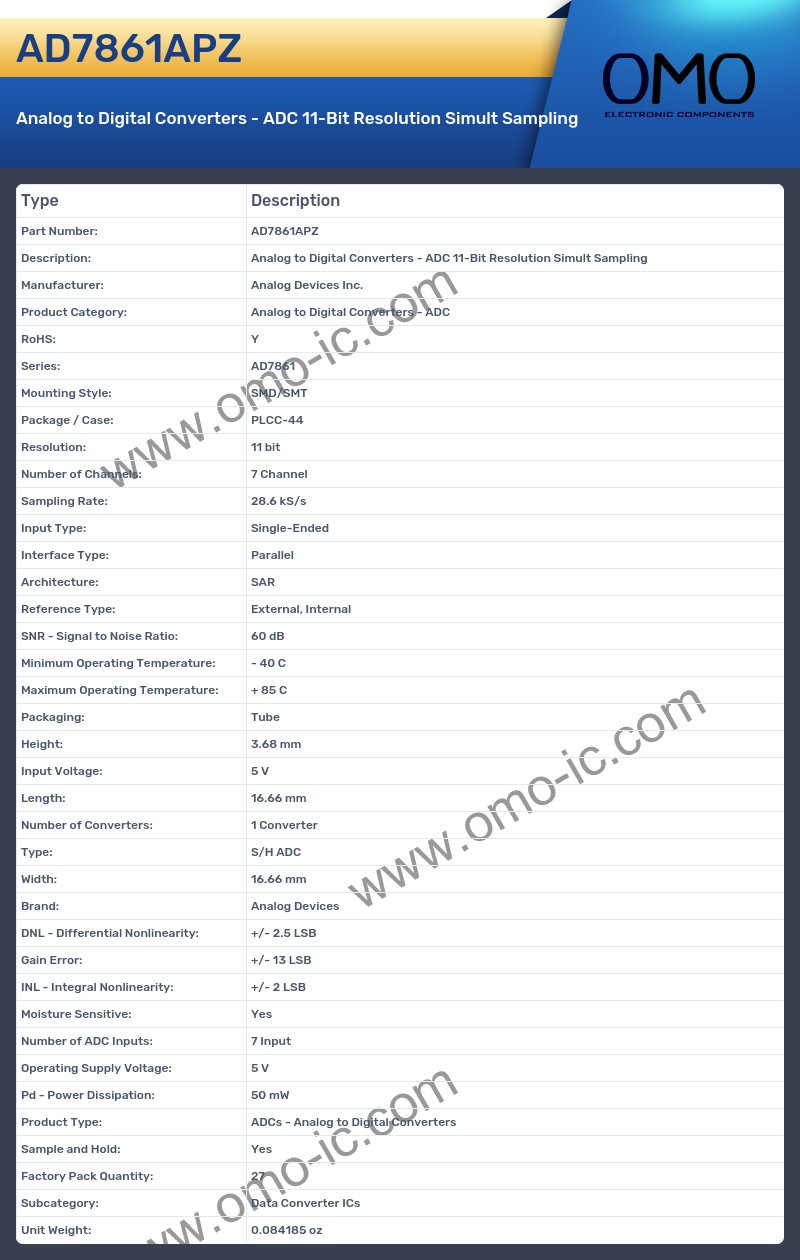

AD7861APZ Image

AD7861APZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: AD7861
• Mounting Style: SMD/SMT
• Package / Case: PLCC-44
• Resolution: 11 bit
• Number of Channels: 7 Channel
• Sampling Rate: 28.6 kS/s
• Input Type: Single-Ended
• Interface Type: Parallel
• Architecture: SAR
• Reference Type: External, Internal
• SNR - Signal to Noise Ratio: 60 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tube
• Height: 3.68 mm
• Input Voltage: 5 V
• Length: 16.66 mm
• Number of Converters: 1 Converter
• Type: S/H ADC
• Width: 16.66 mm
• Brand: Analog Devices
• DNL - Differential Nonlinearity: +/- 2.5 LSB
• Gain Error: +/- 13 LSB
• INL - Integral Nonlinearity: +/- 2 LSB
• Moisture Sensitive: Yes
• Number of ADC Inputs: 7 Input
• Operating Supply Voltage: 5 V
• Pd - Power Dissipation: 50 mW
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• Factory Pack Quantity: 27
• Subcategory: Data Converter ICs
• Unit Weight: 0.084185 oz
