AD7581JN

AD7581JN Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of Through Hole. PDIP-28 package/case type is utilized by this product. This product is equipped with 8 Channel for efficient performance. The sampling rate of this product is 1.5 kS/s. Single-Ended input type Interface Type: Parallel SAR architecture External is the reference type. The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. Tube packaging for easy dispensing The height of the product is 4.95 mm. 10 V, +/- 5 V Input Voltage 39.75 mm long Analog Devices is a trusted brand for quality electronics The +/- 1.875 LSB, ensuring accurate and precise analog-to-digital conversion. +/- 6 LSB is 0.2%. INL is within +/- 1.875 LSB 5 V operating supply voltage range 8 mW ADCs - Analog to Digital Converters product type 13 of 100 Data Converter ICs as subcategory 1. 0.147798 oz of Unit Weight

AD7581JN Image

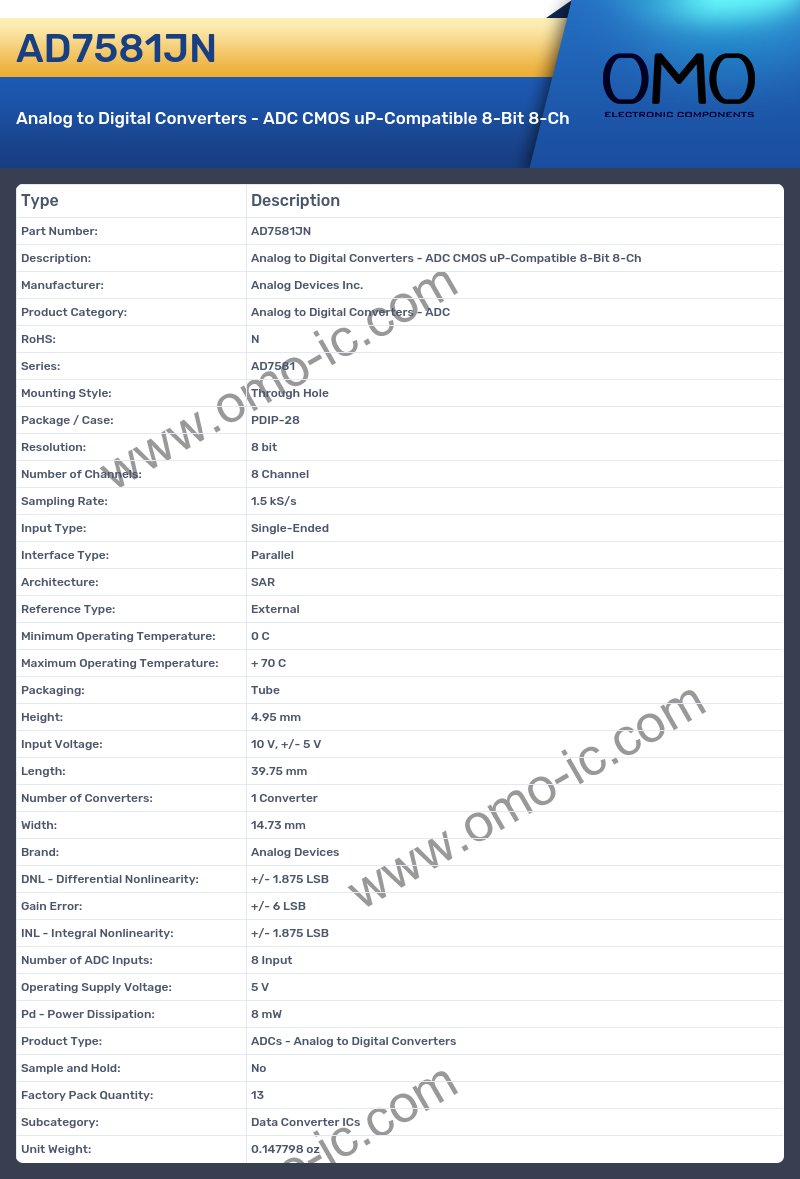

AD7581JN Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: N
• Series: AD7581
• Mounting Style: Through Hole
• Package / Case: PDIP-28
• Resolution: 8 bit
• Number of Channels: 8 Channel
• Sampling Rate: 1.5 kS/s
• Input Type: Single-Ended
• Interface Type: Parallel
• Architecture: SAR
• Reference Type: External
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Packaging: Tube
• Height: 4.95 mm
• Input Voltage: 10 V, +/- 5 V
• Length: 39.75 mm
• Number of Converters: 1 Converter
• Width: 14.73 mm
• Brand: Analog Devices
• DNL - Differential Nonlinearity: +/- 1.875 LSB
• Gain Error: +/- 6 LSB
• INL - Integral Nonlinearity: +/- 1.875 LSB
• Number of ADC Inputs: 8 Input
• Operating Supply Voltage: 5 V
• Pd - Power Dissipation: 8 mW
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: No
• Factory Pack Quantity: 13
• Subcategory: Data Converter ICs
• Unit Weight: 0.147798 oz
