AD7572AAQ03

AD7572AAQ03 Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of Through Hole. CDIP-24 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Single-Ended input type Interface Type: Parallel SAR architecture Internal is the reference type. This product requires an 5 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing The height of the product is 3.56 mm. 5 V Input Voltage 32.51 mm long Analog Devices is a trusted brand for quality electronics The +/- 1 LSB, ensuring accurate and precise analog-to-digital conversion. +/- 8 LSB is 0.2%. INL is within +/- 1 LSB 5 V, 15 V operating supply voltage range 215 mW ADCs - Analog to Digital Converters product type 15 of 100 Data Converter ICs as subcategory

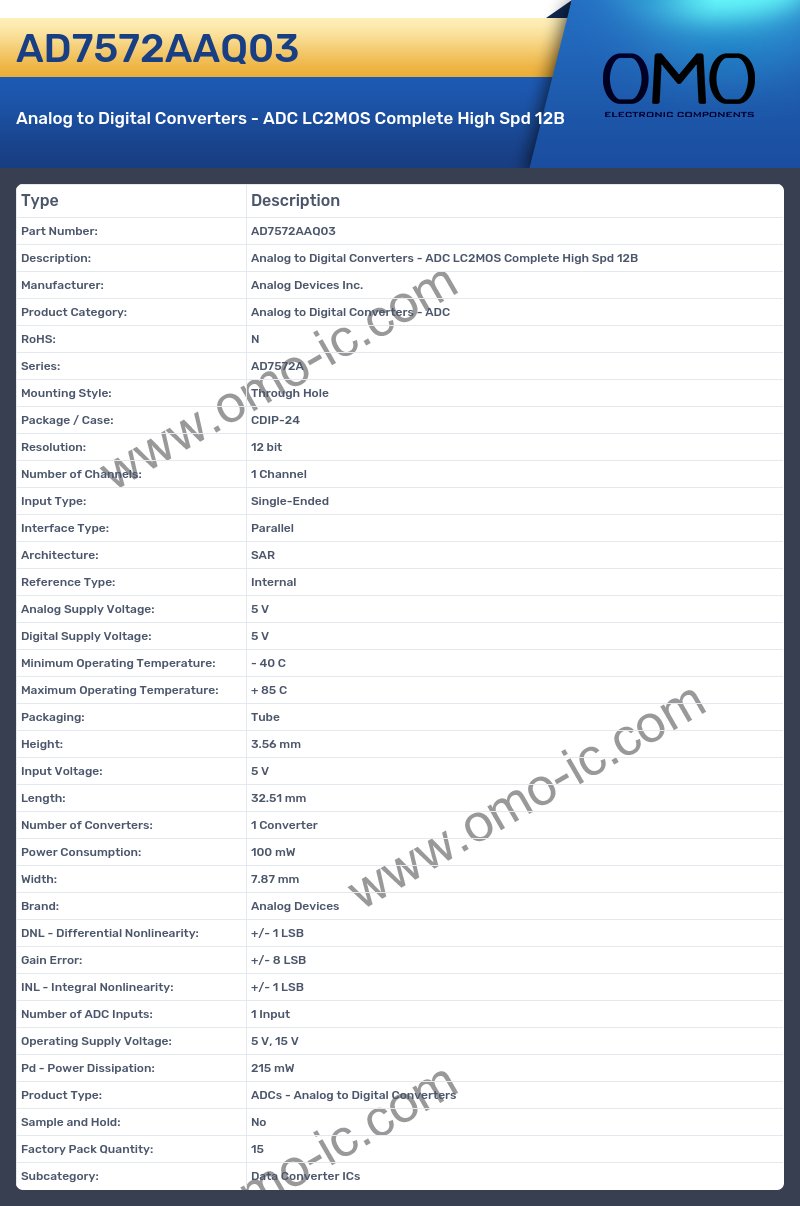

AD7572AAQ03 Image

AD7572AAQ03 Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: N
• Series: AD7572A
• Mounting Style: Through Hole
• Package / Case: CDIP-24
• Resolution: 12 bit
• Number of Channels: 1 Channel
• Input Type: Single-Ended
• Interface Type: Parallel
• Architecture: SAR
• Reference Type: Internal
• Analog Supply Voltage: 5 V
• Digital Supply Voltage: 5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tube
• Height: 3.56 mm
• Input Voltage: 5 V
• Length: 32.51 mm
• Number of Converters: 1 Converter
• Power Consumption: 100 mW
• Width: 7.87 mm
• Brand: Analog Devices
• DNL - Differential Nonlinearity: +/- 1 LSB
• Gain Error: +/- 8 LSB
• INL - Integral Nonlinearity: +/- 1 LSB
• Number of ADC Inputs: 1 Input
• Operating Supply Voltage: 5 V, 15 V
• Pd - Power Dissipation: 215 mW
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: No
• Factory Pack Quantity: 15
• Subcategory: Data Converter ICs
