AD7470ARUZ

AD7470ARUZ Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. TSSOP-24 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 1.75 MS/s. Single-Ended input type Interface Type: Parallel SAR architecture External is the reference type. This product requires an 2.7 V to 5.25 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing The height of the product is 1.05 mm. 2.5 V Input Voltage 7.8 mm long This device belongs to the S/H ADC type. Analog Devices is a trusted brand for quality electronics The +/- 0.9 LSB, ensuring accurate and precise analog-to-digital conversion. +/- 1 LSB is 0.2%. INL is within +/- 1 LSB 5 V operating supply voltage range 12 mW ADCs - Analog to Digital Converters product type 62 of 100 Data Converter ICs as subcategory 1. 0.007478 oz of Unit Weight

AD7470ARUZ Image

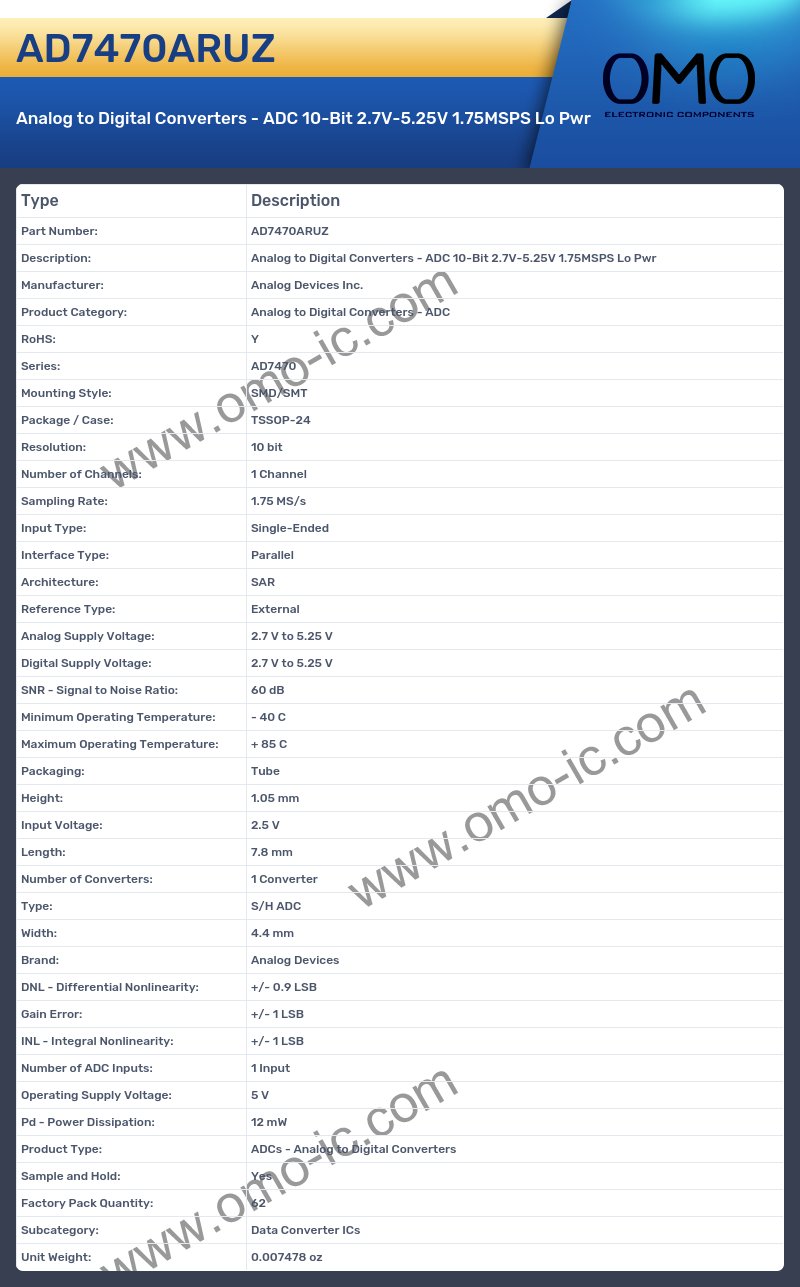

AD7470ARUZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: AD7470
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-24
• Resolution: 10 bit
• Number of Channels: 1 Channel
• Sampling Rate: 1.75 MS/s
• Input Type: Single-Ended
• Interface Type: Parallel
• Architecture: SAR
• Reference Type: External
• Analog Supply Voltage: 2.7 V to 5.25 V
• Digital Supply Voltage: 2.7 V to 5.25 V
• SNR - Signal to Noise Ratio: 60 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tube
• Height: 1.05 mm
• Input Voltage: 2.5 V
• Length: 7.8 mm
• Number of Converters: 1 Converter
• Type: S/H ADC
• Width: 4.4 mm
• Brand: Analog Devices
• DNL - Differential Nonlinearity: +/- 0.9 LSB
• Gain Error: +/- 1 LSB
• INL - Integral Nonlinearity: +/- 1 LSB
• Number of ADC Inputs: 1 Input
• Operating Supply Voltage: 5 V
• Pd - Power Dissipation: 12 mW
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• Factory Pack Quantity: 62
• Subcategory: Data Converter ICs
• Unit Weight: 0.007478 oz
