AD7244JR

AD7244JR Overview

This product is manufactured by Analog Devices Inc.. The sampling rate of this product is 250 kS/s. This product is equipped with 2 Channel for efficient performance. 4 us settling time Interface Type: Serial External is the reference type. Supply Voltage - Max: 5.25 V Supply Voltage - Min: 4.75 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-28 package/case type is utilized by this product. Tube packaging for easy dispensing The height of the product is 2.44 mm. 18.02 mm long The output type is Voltage. This device belongs to the General Purpose type. R-2R architecture Analog Devices is a trusted brand for quality electronics The +/- 1 LSB, ensuring accurate and precise analog-to-digital conversion. INL is within +/- 1 LSB Yes regarding Moisture Sensitivity 4.75 V to 5.25 V operating supply voltage range 550 mW DACs - Digital to Analog Converters product type 27 of 100 Data Converter ICs as subcategory 1. 0.078125 oz of Unit Weight

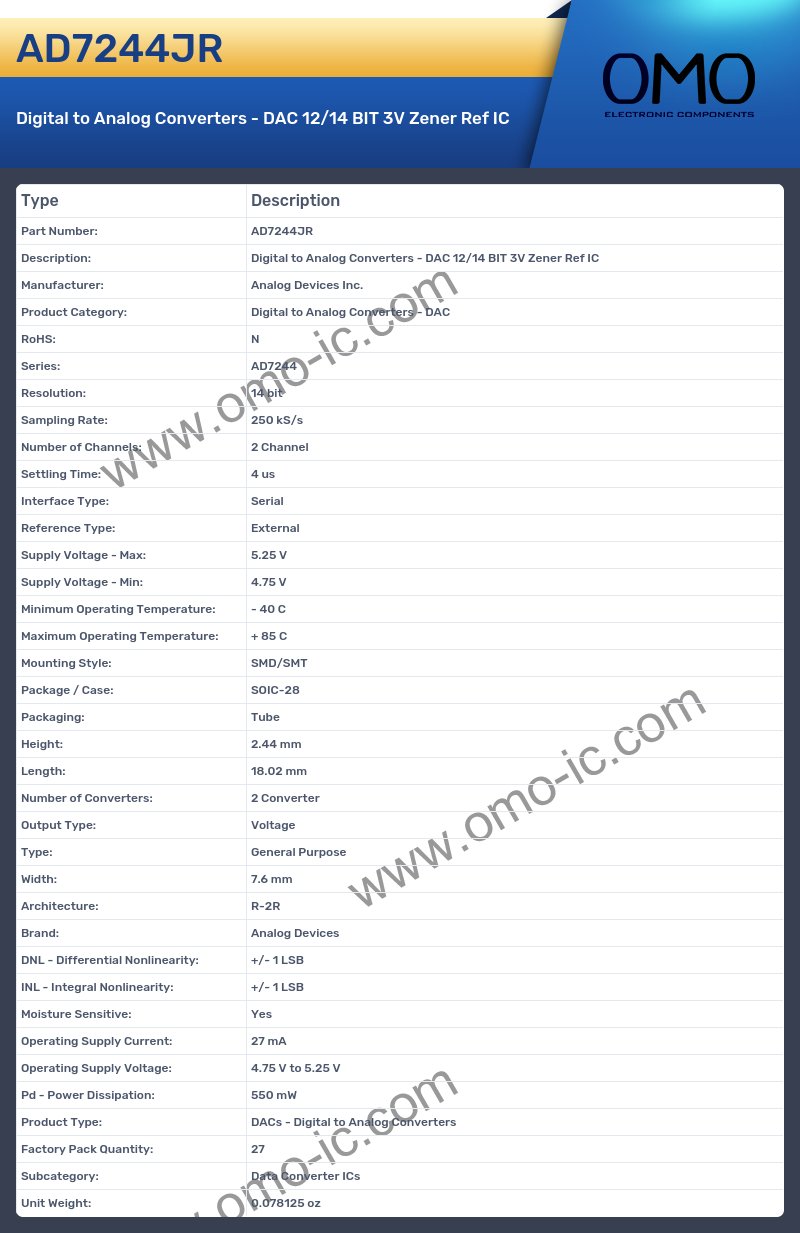

AD7244JR Image

AD7244JR Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Digital to Analog Converters - DAC
• RoHS: N
• Series: AD7244
• Resolution: 14 bit
• Sampling Rate: 250 kS/s
• Number of Channels: 2 Channel
• Settling Time: 4 us
• Interface Type: Serial
• Reference Type: External
• Supply Voltage - Max: 5.25 V
• Supply Voltage - Min: 4.75 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-28
• Packaging: Tube
• Height: 2.44 mm
• Length: 18.02 mm
• Number of Converters: 2 Converter
• Output Type: Voltage
• Type: General Purpose
• Width: 7.6 mm
• Architecture: R-2R
• Brand: Analog Devices
• DNL - Differential Nonlinearity: +/- 1 LSB
• INL - Integral Nonlinearity: +/- 1 LSB
• Moisture Sensitive: Yes
• Operating Supply Current: 27 mA
• Operating Supply Voltage: 4.75 V to 5.25 V
• Pd - Power Dissipation: 550 mW
• Product Type: DACs - Digital to Analog Converters
• Factory Pack Quantity: 27
• Subcategory: Data Converter ICs
• Unit Weight: 0.078125 oz
