AD5551BR

AD5551BR Overview

This product is manufactured by Analog Devices Inc.. The sampling rate of this product is 1 MS/s. This product is equipped with 1 Channel for efficient performance. 1 us settling time Interface Type: Serial, 3-Wire, DSP, SPI External is the reference type. Supply Voltage - Max: 5.5 V Supply Voltage - Min: 2.7 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. Tube packaging for easy dispensing The height of the product is 1.5 mm. 5 mm long The output type is Voltage. This device belongs to the General Purpose type. R-2R architecture Analog Devices is a trusted brand for quality electronics The +/- 0.8 LSB, ensuring accurate and precise analog-to-digital conversion. INL is within +/- 1 LSB 2.7 V to 5.5 V operating supply voltage range 0.825 mW DACs - Digital to Analog Converters product type 98 of 100 Data Converter ICs as subcategory 1. 0.019048 oz of Unit Weight

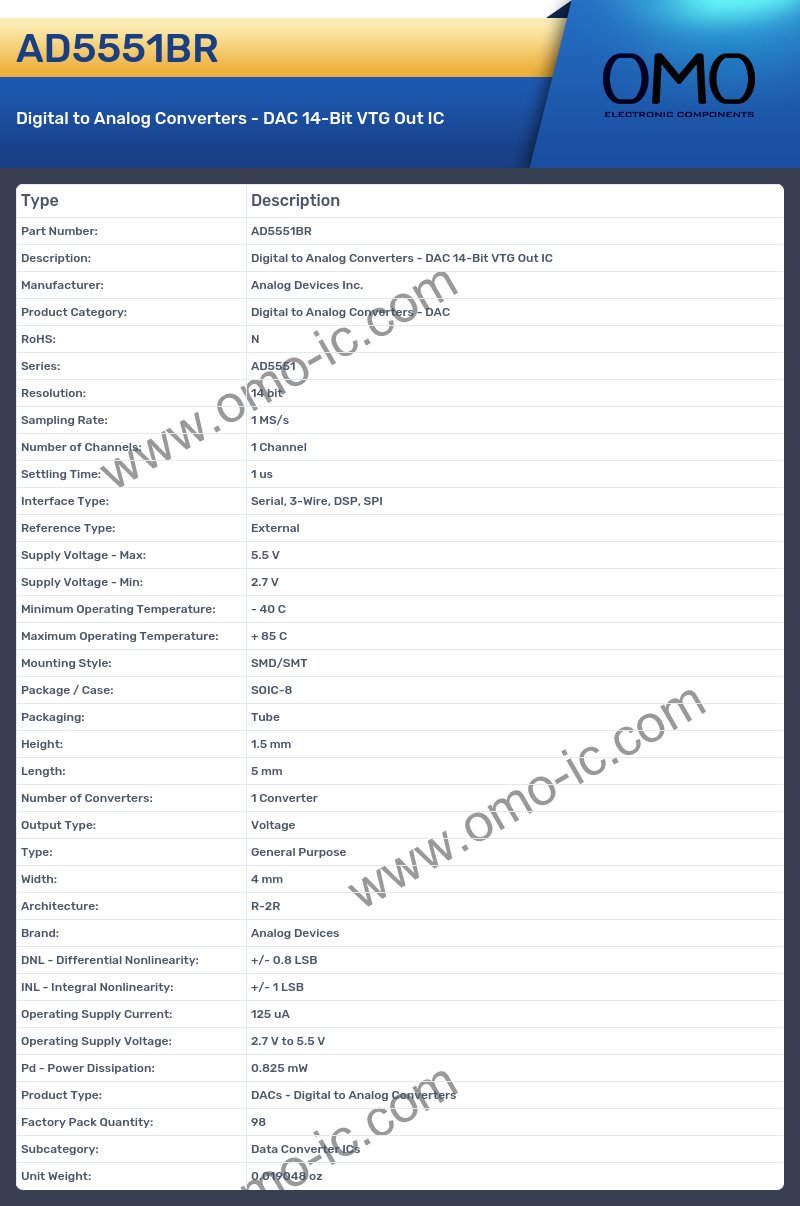

AD5551BR Image

AD5551BR Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Digital to Analog Converters - DAC
• RoHS: N
• Series: AD5551
• Resolution: 14 bit
• Sampling Rate: 1 MS/s
• Number of Channels: 1 Channel
• Settling Time: 1 us
• Interface Type: Serial, 3-Wire, DSP, SPI
• Reference Type: External
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 2.7 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Packaging: Tube
• Height: 1.5 mm
• Length: 5 mm
• Number of Converters: 1 Converter
• Output Type: Voltage
• Type: General Purpose
• Width: 4 mm
• Architecture: R-2R
• Brand: Analog Devices
• DNL - Differential Nonlinearity: +/- 0.8 LSB
• INL - Integral Nonlinearity: +/- 1 LSB
• Operating Supply Current: 125 uA
• Operating Supply Voltage: 2.7 V to 5.5 V
• Pd - Power Dissipation: 0.825 mW
• Product Type: DACs - Digital to Analog Converters
• Factory Pack Quantity: 98
• Subcategory: Data Converter ICs
• Unit Weight: 0.019048 oz
