AD5546BRU

AD5546BRU Overview

This product is manufactured by Analog Devices Inc.. The sampling rate of this product is 2 MS/s. This product is equipped with 1 Channel for efficient performance. 500 ns settling time Interface Type: Parallel External is the reference type. Supply Voltage - Max: 5.5 V Supply Voltage - Min: 2.7 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. TSSOP-28 package/case type is utilized by this product. Tube packaging for easy dispensing The height of the product is 1.05 mm. 9.7 mm long The output type is Current. This device belongs to the General Purpose type. R-2R or Current Steering architecture Analog Devices is a trusted brand for quality electronics EVAL-AD5546SDZ is a versatile development platform for hardware and software The +/- 1 LSB, ensuring accurate and precise analog-to-digital conversion. INL is within +/- 2 LSB 2.7 V to 5.5 V operating supply voltage range 0.055 mW DACs - Digital to Analog Converters product type 50 of 100 Data Converter ICs as subcategory 1. 0.014215 oz of Unit Weight

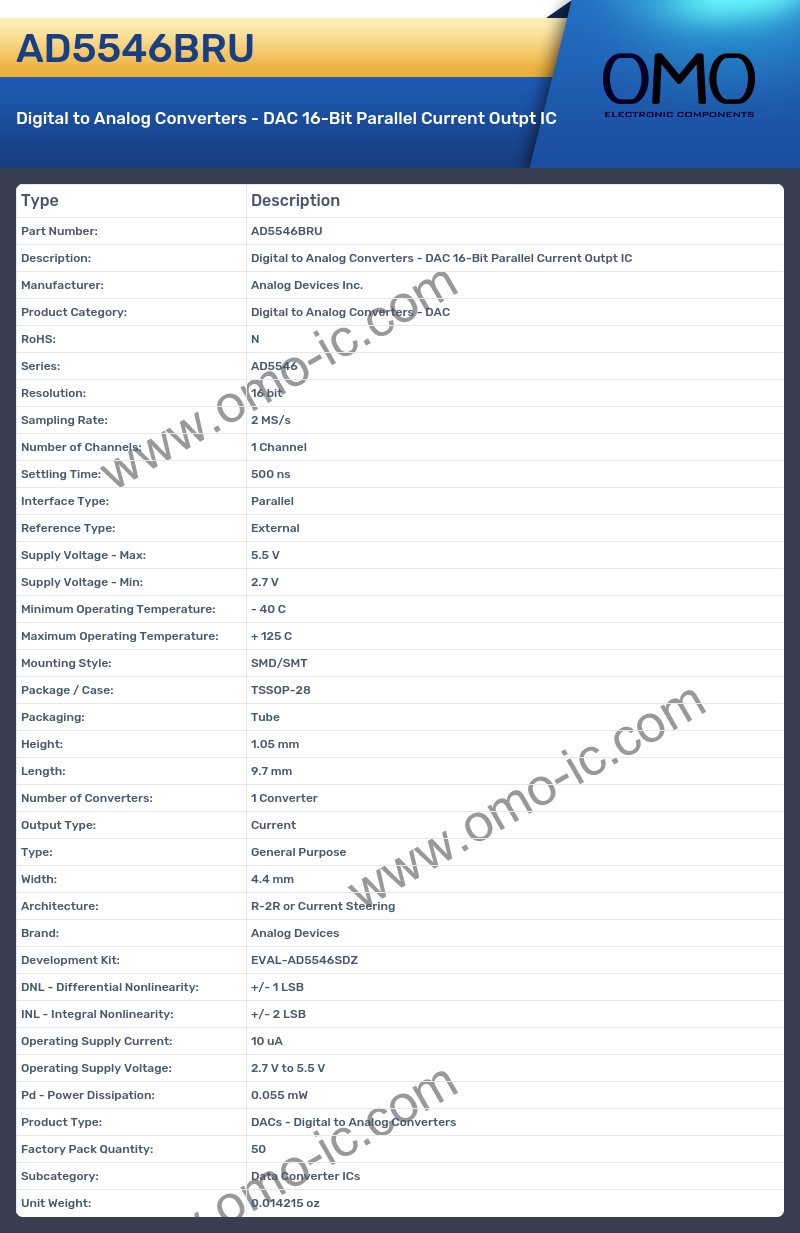

AD5546BRU Image

AD5546BRU Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Digital to Analog Converters - DAC
• RoHS: N
• Series: AD5546
• Resolution: 16 bit
• Sampling Rate: 2 MS/s
• Number of Channels: 1 Channel
• Settling Time: 500 ns
• Interface Type: Parallel
• Reference Type: External
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 2.7 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-28
• Packaging: Tube
• Height: 1.05 mm
• Length: 9.7 mm
• Number of Converters: 1 Converter
• Output Type: Current
• Type: General Purpose
• Width: 4.4 mm
• Architecture: R-2R or Current Steering
• Brand: Analog Devices
• Development Kit: EVAL-AD5546SDZ
• DNL - Differential Nonlinearity: +/- 1 LSB
• INL - Integral Nonlinearity: +/- 2 LSB
• Operating Supply Current: 10 uA
• Operating Supply Voltage: 2.7 V to 5.5 V
• Pd - Power Dissipation: 0.055 mW
• Product Type: DACs - Digital to Analog Converters
• Factory Pack Quantity: 50
• Subcategory: Data Converter ICs
• Unit Weight: 0.014215 oz
