74LVTH162244ZQLR

74LVTH162244ZQLR Overview

Product belongs to the 74LVTH series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002056 oz SMD/SMT Mounting-Style BGA-56 Microstar Junior Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: 3-State Number of channels: 16 Channel Voltage Supply Range: 2.7 V ~ 3.6 V Supplier device package: 56-BGA MICROSTAR JUNIOR (7.0x4.5) 4 element Buffer/Line Driver, Non-Inverting logic type 4 bits per element Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Polarity: Inverting Non-Inverting 5 mA is 92 nA. Maximum supply voltage of 3.6 V Minimum supply voltage is 2.7 V LVT logic type 3.4 ns at 3.3 V is 23 microseconds. High-Level-Output-Current of - 12 mA 12 mA low-level output current Number-of-Input-Lines: 16 Input Number-of-Output-Lines: 16 Output

74LVTH162244ZQLR Image

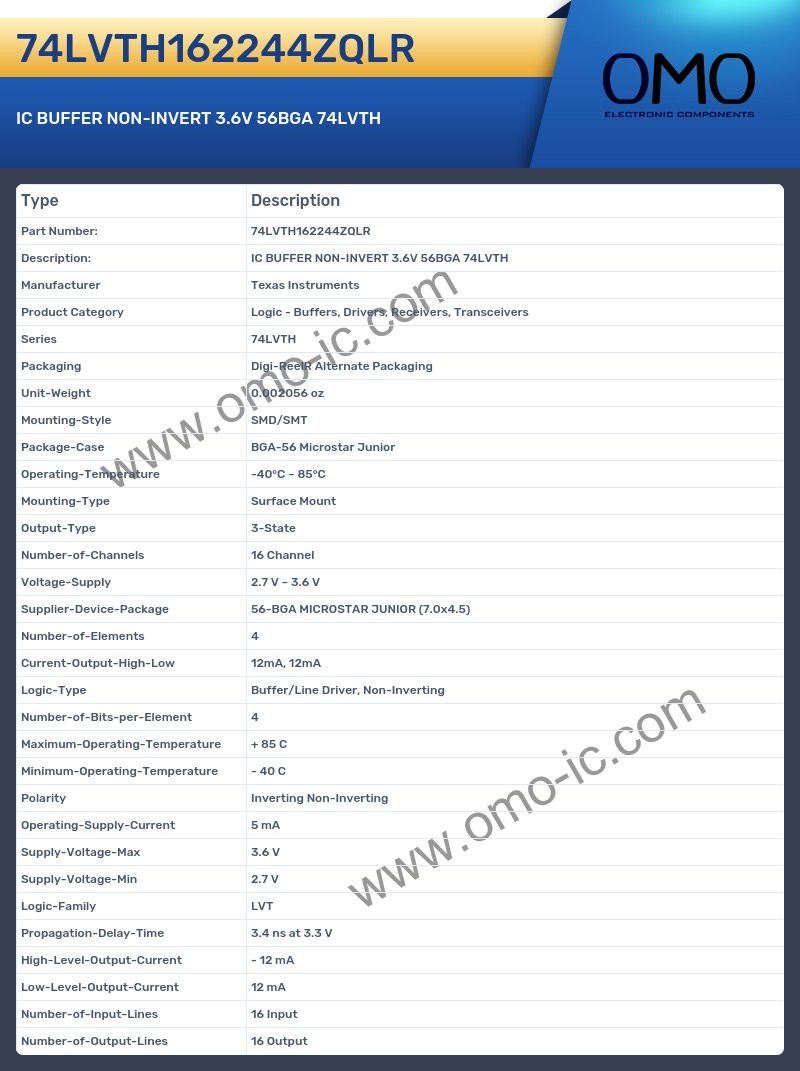

74LVTH162244ZQLR Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Buffers, Drivers, Receivers, Transceivers
• Series 74LVTH
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.002056 oz
• Mounting-Style SMD/SMT
• Package-Case BGA-56 Microstar Junior
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type 3-State
• Number-of-Channels 16 Channel
• Voltage-Supply 2.7 V ~ 3.6 V
• Supplier-Device-Package 56-BGA MICROSTAR JUNIOR (7.0x4.5)
• Number-of-Elements 4
• Current-Output-High-Low 12mA, 12mA
• Logic-Type Buffer/Line Driver, Non-Inverting
• Number-of-Bits-per-Element 4
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Polarity Inverting Non-Inverting
• Operating-Supply-Current 5 mA
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 2.7 V
• Logic-Family LVT
• Propagation-Delay-Time 3.4 ns at 3.3 V
• High-Level-Output-Current - 12 mA
• Low-Level-Output-Current 12 mA
• Number-of-Input-Lines 16 Input
• Number-of-Output-Lines 16 Output
