74VHC05TTR

74VHC05TTR Overview

This product is manufactured by STMicroelectronics. Polarity type: Inverting Supply Voltage - Max: 5.5 V Supply Voltage - Min: 2 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. TSSOP-14 package/case type is utilized by this product. Reel packaging for easy dispensing t's a Buffer/Driver The height of the product is 1 mm. 5 mm long The output type is Open Drain. STMicroelectronics is a trusted brand for quality electronics The product uses the VHC logic family. CMOS. This product is equipped with 5 for efficient performance. Maximum supply current: 2 uA Single-Ended is the input signal type. Low Level Output Current is 8 mA Yes regarding Moisture Sensitivity 2 V to 5.5 V operating supply voltage range Buffers & Line Drivers product type The propagation delay time is 10.6 ns at 3.3 V, 7.5 ns at 5 V. 2500 of 100 Logic ICs as subcategory 1. 0.004949 oz of Unit Weight

74VHC05TTR Image

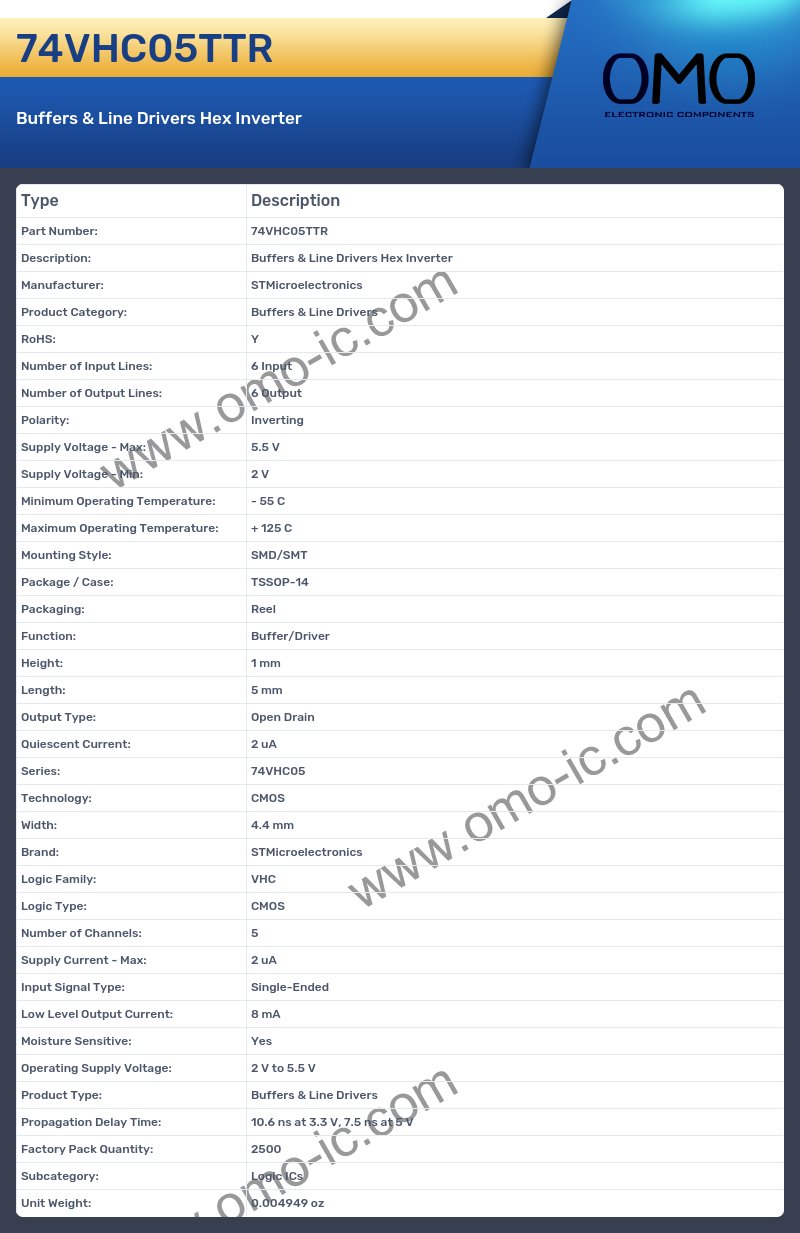

74VHC05TTR Specifications

• Manufacturer: STMicroelectronics
• Product Category: Buffers & Line Drivers
• RoHS: Y
• Number of Input Lines: 6 Input
• Number of Output Lines: 6 Output
• Polarity: Inverting
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 2 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-14
• Packaging: Reel
• Function: Buffer/Driver
• Height: 1 mm
• Length: 5 mm
• Output Type: Open Drain
• Quiescent Current: 2 uA
• Series: 74VHC05
• Technology: CMOS
• Width: 4.4 mm
• Brand: STMicroelectronics
• Logic Family: VHC
• Logic Type: CMOS
• Number of Channels: 5
• Supply Current - Max: 2 uA
• Input Signal Type: Single-Ended
• Low Level Output Current: 8 mA
• Moisture Sensitive: Yes
• Operating Supply Voltage: 2 V to 5.5 V
• Product Type: Buffers & Line Drivers
• Propagation Delay Time: 10.6 ns at 3.3 V, 7.5 ns at 5 V
• Factory Pack Quantity: 2500
• Subcategory: Logic ICs
• Unit Weight: 0.004949 oz
