5962-9312601MXA Overview

Product belongs to the AD1671 series. This product is categorized as Analog to Digital Converters Type: S/H ADC Tube is the packaging method for this product Through Hole Mounting-Style The Single-Ended for this product is CMOS/TTL. Number of channels: 1 Channel The architecture of this product is Pipeline . External Internal is the reference type. Power-off control: 750 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C This product has a Power Consumption of 570 mW. Parallel interface type CDIP-28 The 0.35 %FSR of this product is 0.2%. Number-of-Converters: 1 Converter 1.25 MS/s Sampling Rate Integral Nonlinearity: +/- 3 LSB

5962-9312601MXA Image

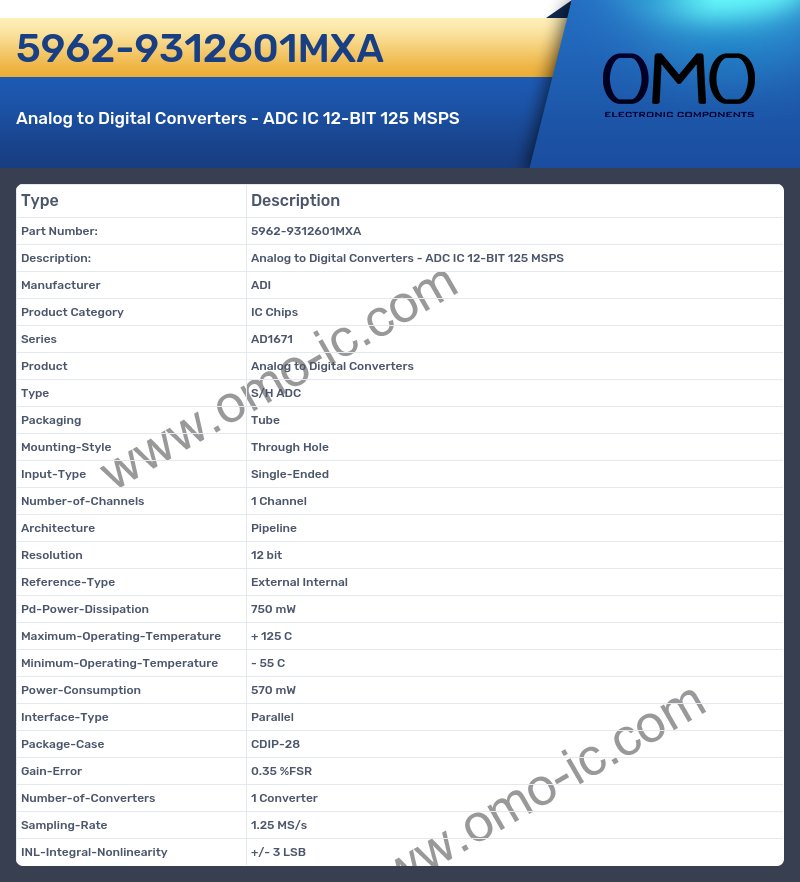

5962-9312601MXA Specifications

• Manufacturer ADI
• Product Category IC Chips
• Series AD1671
• Product Analog to Digital Converters
• Type S/H ADC
• Packaging Tube
• Mounting-Style Through Hole
• Input-Type Single-Ended
• Number-of-Channels 1 Channel
• Architecture Pipeline
• Resolution 12 bit
• Reference-Type External Internal
• Pd-Power-Dissipation 750 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Power-Consumption 570 mW
• Interface-Type Parallel
• Package-Case CDIP-28
• Gain-Error 0.35 %FSR
• Number-of-Converters 1 Converter
• Sampling-Rate 1.25 MS/s
• INL-Integral-Nonlinearity +/- 3 LSB
