2N5657 Overview

Product belongs to the 2N5657 series. Tube is the packaging method for this product Through Hole Mounting-Style SOT-32-3 Configuration Single Power-off control: 20 W Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Rated VCEO up to 350 V The transistor polarity is NPN. Saturation voltage between collector and emitter is 10 V The 375 V voltage rating is 40 V. 6 V rating of 5 V Max DC collector current: 1 A Gain-Bandwidth-Product: 10 MHz This product is capable of handling a 0.5 A continuous collector current. Minimum hfe for DC collector-base gain is 30. 250 of 605.

2N5657 Image

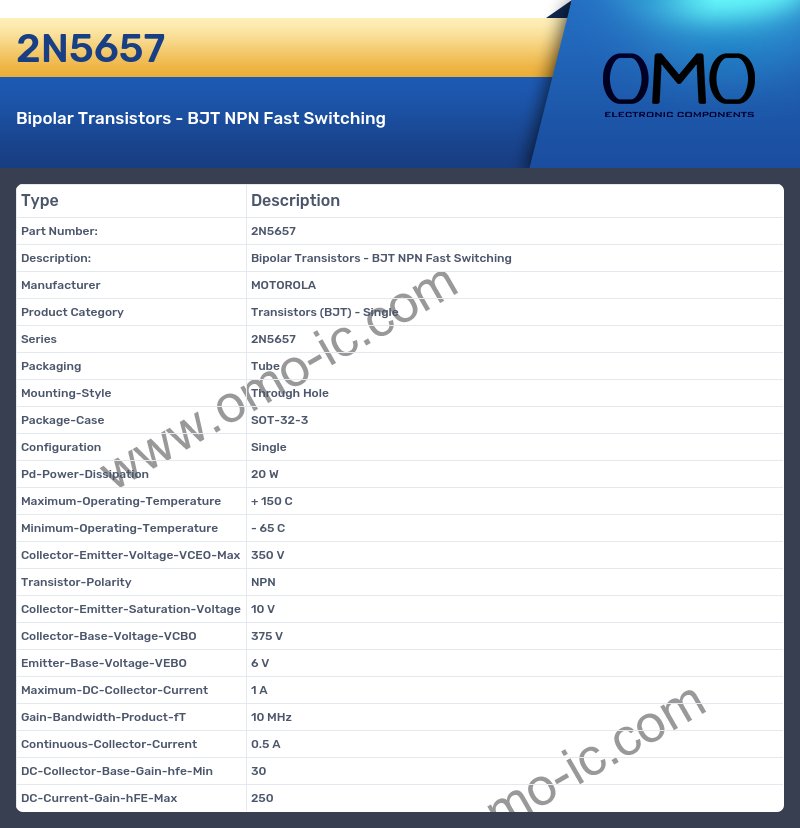

2N5657 Specifications

• Manufacturer MOTOROLA
• Product Category Transistors (BJT) - Single
• Series 2N5657
• Packaging Tube
• Mounting-Style Through Hole
• Package-Case SOT-32-3
• Configuration Single
• Pd-Power-Dissipation 20 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 65 C
• Collector-Emitter-Voltage-VCEO-Max 350 V
• Transistor-Polarity NPN
• Collector-Emitter-Saturation-Voltage 10 V
• Collector-Base-Voltage-VCBO 375 V
• Emitter-Base-Voltage-VEBO 6 V
• Maximum-DC-Collector-Current 1 A
• Gain-Bandwidth-Product-fT 10 MHz
• Continuous-Collector-Current 0.5 A
• DC-Collector-Base-Gain-hfe-Min 30
• DC-Current-Gain-hFE-Max 250
