2N5191

2N5191 Overview

Product belongs to the 2N5191 series. Tube is the packaging method for this product SMD/SMT Mounting-Style SOT-32 Configuration Single Power-off control: 40 W Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Rated VCEO up to 60 V The transistor polarity is NPN. Saturation voltage between collector and emitter is 1.4 V The 60 V voltage rating is 40 V. 5 V rating of 5 V Max DC collector current: 7 A This product is capable of handling a 4 A continuous collector current. Minimum hfe for DC collector-base gain is 25. 100 of 605.

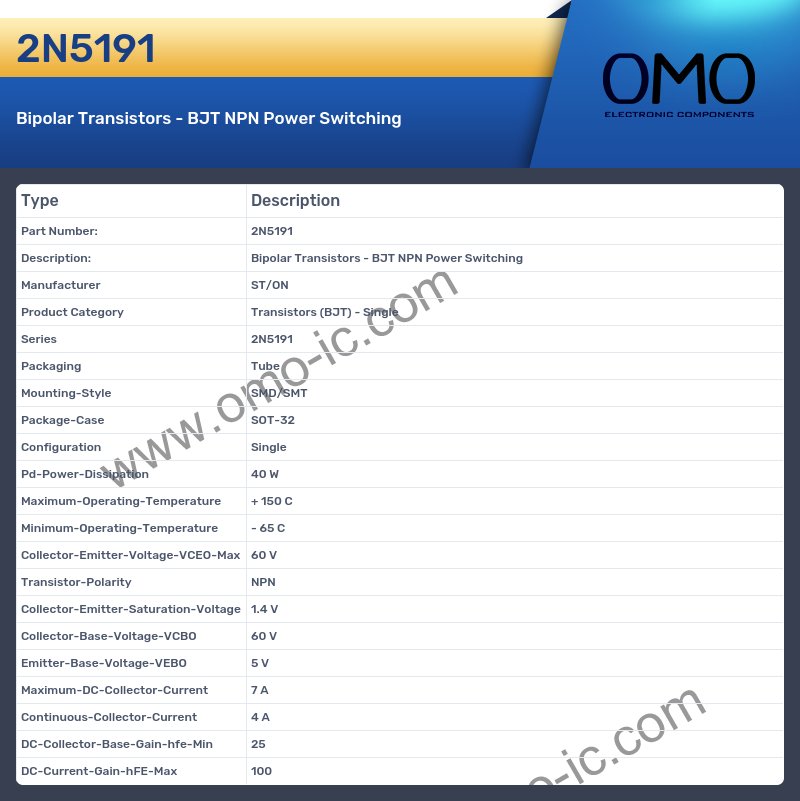

2N5191 Image

2N5191 Specifications

• Manufacturer ST/ON
• Product Category Transistors (BJT) - Single
• Series 2N5191
• Packaging Tube
• Mounting-Style SMD/SMT
• Package-Case SOT-32
• Configuration Single
• Pd-Power-Dissipation 40 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 65 C
• Collector-Emitter-Voltage-VCEO-Max 60 V
• Transistor-Polarity NPN
• Collector-Emitter-Saturation-Voltage 1.4 V
• Collector-Base-Voltage-VCBO 60 V
• Emitter-Base-Voltage-VEBO 5 V
• Maximum-DC-Collector-Current 7 A
• Continuous-Collector-Current 4 A
• DC-Collector-Base-Gain-hfe-Min 25
• DC-Current-Gain-hFE-Max 100
